Software Stack¶
The Phylanx framework is made up of several distinct layers as illustrated in Figure 1.

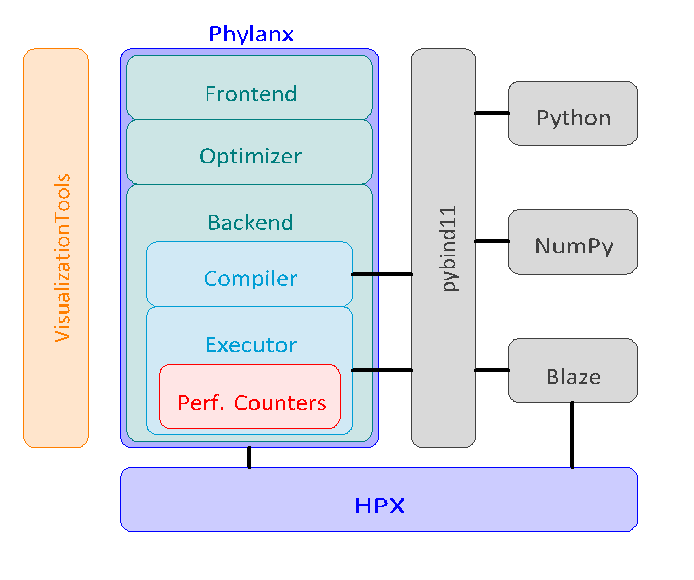

Fig. 1 Figure 1. Overview of the Phylanx toolkit.¶
In this portion of the manual we discuss the external libraries Phylanx depends on and the layers of the software stack.
External Libraries¶
HPX¶
HPX is an asynchronous many-task runtime system capable of running scientific applications both on a single process as well as in a distributed setting on thousands of nodes. In this project, we use HPX as an execution engine which schedules tasks created by Phylanx and manages the required task synchronization both locally and in a distributed setting. To learn more about HPX, please refer to the HPX Documentation.
Blaze¶
Blaze is a high performance C++ math library which leverages meta-programing techniques to transform matrix arithmetic into highly efficient operations. More information about the library can be found on the Blaze project page
APEX¶
APEX is an introspection and runtime adaptation library which is developed in coordination with Phylanx. The library supports tools such as TAU, PAPI, ActiveHarmony, and OTF2. In the Phylanx project our team uses APEX as a platform to gather performance information and use that information to drive a policy engine. To learn more about the project, please refer to the APEX repository
Frontend¶
The Phylanx frontend provides two essential functionalities:
Transform the python code into a Phylanx internal representation called PhySL (Phylanx Specification Language).
Copy-free handling of data objects between Python and Phylanx executor (in C++).
In addition, the frontend exposes two main functionalities of Phylanx that are implemented in C++ and required for generation and evaluation of the execution tree in Python. These functions are the compile and eval methods.
1. Code Transformation - Performance benefits of many-task runtime systems, like HPX, are more prominent when the compute loads of the system exceeds the available resources. Therefore, using these runtimes for sections of a program which are not computationally intensive may result in little performance benefit. Moreover, the overhead of code transformation and inherent extraneous work imposed by runtime systems may even cause performance degradation. Therefore, we have opted to limit our optimizations to performance critical parts of the code which we call computational kernels. The Phylanx frontend provides a decorator @Phylanx to trigger transformation of kernels into the execution tree.
We have developed a custom internal representation of Python AST in order to facilitate the analysis of static optimizations and streamline the generation of the execution tree. The human-readable version of the AST, aka PhySL, is automatically generated and compiled into the execution tree by the frontend. More details on this compilation process can be found in~ref{subsec:exe_tree}. The benefit of using PhySL as the intermediate representation is twofold: (1) it closely reflects the nodes of the execution tree as each PhySL node represents a function that will be run by an HPX task during evaluation, and (2) it can be used for debugging and analyzing purposes for developers interested in custom optimizations.
The compiled kernel is cached and can be invoked directly in Python or in other kernels.
2. Data Management - Phylanx’s data structures rely on the high-performance open-source C++ library Blaze. Blaze already supports HPX as a parallelization library backend and it perfectly maps its data to Python data structures. Each Python list is mapped to a C++ vector and 1-D and 2-D NumPy arrays are mapped to a Blaze vector and Blaze matrix respectively. To avoid data copies between Python and C++, we take advantage of Python buffer protocol through the pybind11 library. Figure~ref{fig:phylanxarch} shows how Phylanx manages interactions with external libraries.
Execution Tree¶
After the transformation phase, the frontend passes the generated AST to the Phylanx compiler to construct the execution tree where nodes are primitives and edges represent dependencies between parents and children pairs.
Primitives are the cornerstones of the Phylanx toolkit and building blocks of the Phylanx execution tree. Primitives are C++ objects which contain a single execute function. This function is wrapped in a dataflow and can be as simple as a single instruction or as complex as a sophisticated algorithm. We have implemented and optimized most Python constructs as well as many NumPy methods as primitives. Futurization and asynchronous execution of tasks are enabled through these constructs. One can consider primitives as lightweight tasks that are mapped to HPX threads. Each primitive accepts a list of futures as its arguments and returns the result of its wrapped function as a future. In this way, the primitive can accept both constant values known at compile time as well as the results of previous primitives known only after being computed.
Upon the invocation of a kernel, Phylanx triggers the evaluation function of the root node. This node represents the primitive corresponding to the result of the kernel. In the evaluation function, the root node will call the evaluation function of all of its children and those primitives will call the evaluation functions of their children. This process will continue until the leaf nodes have been reached where the primitives evaluation functions do not depend on other primitives to be resolved (e.g. a primitive which is a constant, a primitive which reads from a file, etc.). It is important to note that it does not matter where each primitive is placed in a distributed system as HPX will resolve its location and properly call its eval function as well as return the primitive’s result to the caller.
As the leaf primitives are reached and their values, held in futures, are returned to their parents, the tree will unravel at the speed of the critical path through the tree. The results from each primitive satisfy one of the inputs of its parent node. After the root primitive finishes its execution, the result of the entire tree is then ready to be consumed by the calling function.
Instrumentation¶
Application performance analysis is a critical part of developing a parallel application. Phylanx enables performance analysis by providing performance counters to provide insight into its intrinsics. Time performance counters show the amount of time that is spent executing code in each subtree of the execution tree, and count performance counters show how many times an execution tree node is executed. This data aides in identifying performance hotspots and bottlenecks, which can either be directly used by the users or fed into APEX for adaptive load balancing. The data can also be used by the visualization tools described in the next section.
Visualization Tools¶
Embedding annotations and measurements for visualizations and performance analysis within the runtime provides a way to determine where performance bottlenecks are occurring and to gain insight into the resource management within the machines. In the tree produced by the tool, nodes are Phylanx primitives and edges show parent/child relationships regarding how the child was called. The nodes are colored purple for the inclusive time, the total time spent executing that primitive and its children. A switch provided in the toolbox allows for the user to switch from inclusive time to exclusive time, the time spent executing only that primitive. This allows for identification of hotspots in the tree. Each primitive can be executed asynchronously or synchronously in the parent thread. This distinction is expressed in dotted versus solid circles for nodes in the tree. The tree is interactive, allowing users to drill down and focus by expanding or collapsing tree nodes and hover for more details. The visualization is linked with a code view showing the Python source code (the corresponding PhySL is shown as well). Hovering over a node or line in one will highlight the corresponding line or node in the other.
